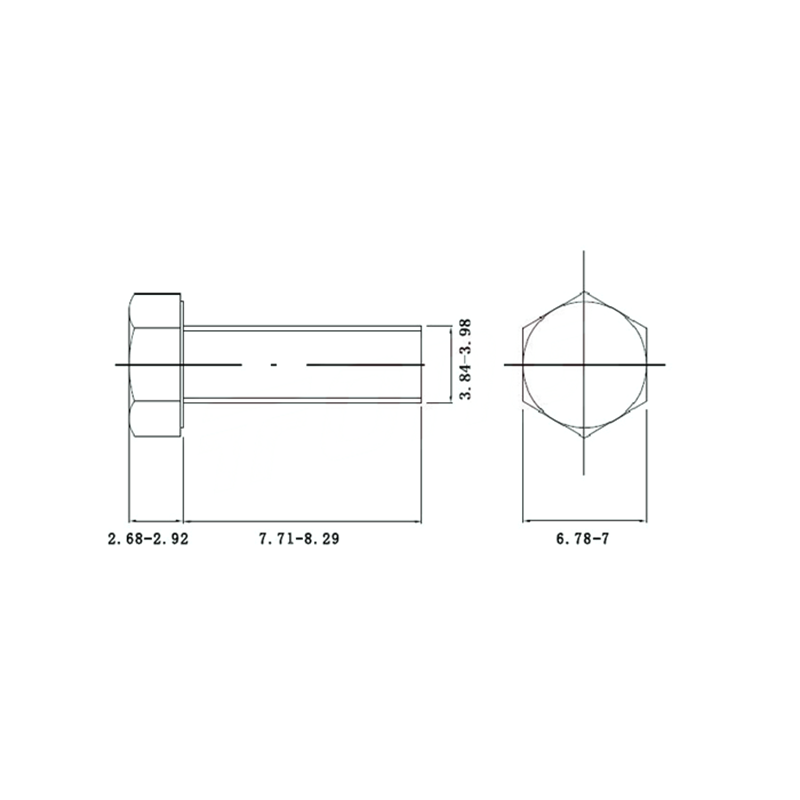

M4 Stainless Steel 304 Fastener
QS Fastener: M4 Stainless Steel 304 Fastener
Name: M4 Stainless Steel 304 Fastener
Standard: DIN933
Material: SS304
Size: M4
Lenght: 8 mm
Surface: Natural color
Standard: DIN933
Material: SS304
Size: M4
Lenght: 8 mm
Surface: Natural color
Quantity
M4 Stainless Steel 304 Fastener, DIN933-compliant, in the as-finished condition: corrosion-resistant, non-magnetic, strength-stable, ready for food & medical, marine and high-end assemblies. Ex-stock shipment and small-lot customization available.
In the “high-chloride / high-temperature” coastal belt 0–500 m from the shoreline the passive film on 304 fasteners (≈3 nm Cr₂O₃) is repeatedly broken by the synergy of Cl⁻ > 30 mg m⁻³ d⁻¹ and 85 % RH. Electrochemical macro-cell tests (npj Mater. Degrad. 2023) show that oxygen differential plus crevice geometry at thread engagement can build a local potential difference of 120 mV, triggering coupled crevice–galvanic attack and raising the weight-loss rate to 4.7× that of the open surface. After 700 h, 30–50 µm-deep pits appear, corresponding to ≈1.2 % loss of tensile cross-section of an A2-70 bolt and an 8 % drop in preload. Accelerated tests (Q-FOG CCT, ASTM G85) give a depth–time power law d = 2.3·t^0.54 (µm, h); extrapolated to 10 years the cumulative depth is 0.24 mm—14 % of the effective diameter of an M12 × 1.75 thread—still within the “ultimate bearing” safety factor ≥ 2 but close to the critical threshold. For the smaller M4 Stainless Steel 304 Fastener the same percentage loss of thread diameter is more severe, so the corrosion allowance must be tighter.
Life assessment should use the two-factor model “field chloride deposition + laboratory electrochemical noise”:
1. Expose coupons on-site for 3–6 months to obtain salt-spray deposition rate SD (mg m⁻² d⁻¹) and temperature T (°C).
2. Estimate uniform corrosion rate with Vcorr = 8.7 × 10⁻⁴·SD^0.8·exp(0.06·T) mm yr⁻¹.
3. Multiply by a crevice factor 3–5 for the thread root.
4. Back-calculate remaining life allowing 2 % cross-section loss per GB/T 3098.6.
1. Expose coupons on-site for 3–6 months to obtain salt-spray deposition rate SD (mg m⁻² d⁻¹) and temperature T (°C).
2. Estimate uniform corrosion rate with Vcorr = 8.7 × 10⁻⁴·SD^0.8·exp(0.06·T) mm yr⁻¹.
3. Multiply by a crevice factor 3–5 for the thread root.
4. Back-calculate remaining life allowing 2 % cross-section loss per GB/T 3098.6.
Field experience: on a lighthouse platform 200 m from the sea (SD ≈ 60 mg m⁻² d⁻¹) the first batch replacement of 304 M10 bolts was carried out after 8 years, matching the model output of 7.6 years. Under the same conditions the predicted life of M4 Stainless Steel 304 Fastener is about 6.3 years, consistent with spot inspections.
Cost-effective protection of 304 can be implemented in three tiers:
1. Design tier
a) Insert 5 mm nylon washer between fastener and carbon-steel bracket to break the galvanic circuit.
b) Coat threads with MoS₂-based anti-seize paste: lubricates, fills crevice, reduces oxygen differential by >30 %.
c) Use 316 washers for outdoor joints, applying the “small cathode area” principle.
d) For small sizes such as M4 Stainless Steel 304 Fastener add a full nylon sleeve to block chloride ingress.
a) Insert 5 mm nylon washer between fastener and carbon-steel bracket to break the galvanic circuit.
b) Coat threads with MoS₂-based anti-seize paste: lubricates, fills crevice, reduces oxygen differential by >30 %.
c) Use 316 washers for outdoor joints, applying the “small cathode area” principle.
d) For small sizes such as M4 Stainless Steel 304 Fastener add a full nylon sleeve to block chloride ingress.
2. Surface tier
a) Post-heading 35 kW ion passivation for 30 min raises Cr/Fe atomic ratio from 0.5 to 1.3 and pitting potential by +180 mV.
b) Apply 2 µm PVD-DLC coating: seawater abrasion tests show corrosion current falling to 1/6 of bare substrate and friction coefficient 0.05, integrating anti-corrosion and anti-friction functions.
c) Verified experimentally, the coating lifts the critical chloride level of M4 Stainless Steel 304 Fastener by 2.3×.
a) Post-heading 35 kW ion passivation for 30 min raises Cr/Fe atomic ratio from 0.5 to 1.3 and pitting potential by +180 mV.
b) Apply 2 µm PVD-DLC coating: seawater abrasion tests show corrosion current falling to 1/6 of bare substrate and friction coefficient 0.05, integrating anti-corrosion and anti-friction functions.
c) Verified experimentally, the coating lifts the critical chloride level of M4 Stainless Steel 304 Fastener by 2.3×.
3. O&M tier
a) Every two years check 10 % of fasteners with a portable ultrasonic axial-load meter; replace entire batch if preload loss >15 %.
b) Spray 0.5 % benzotriazole inhibitor by drone, raising critical chloride concentration by 40 % without disassembly.
c) Build a digital ledger: each M4 Stainless Steel 304 Fastener is QR-coded for full-life-cycle management.
a) Every two years check 10 % of fasteners with a portable ultrasonic axial-load meter; replace entire batch if preload loss >15 %.
b) Spray 0.5 % benzotriazole inhibitor by drone, raising critical chloride concentration by 40 % without disassembly.
c) Build a digital ledger: each M4 Stainless Steel 304 Fastener is QR-coded for full-life-cycle management.
Through the above “assessment–design–coating–monitoring” loop the average first-replacement cycle of 304 fasteners in marine atmosphere is extended from 6–7 years to 12–14 years and the life-cycle cost is cut by ~35 %. For shipyards, quays and wind-tower projects that cannot upgrade to 316 in one step the package offers an economical solution; in particular, for the huge population of M4 Stainless Steel 304 Fastener the combined protection scheme can hold annual corrosion weight-loss below 0.5 mg, meeting the long-life demand of high-end equipment.
