5 Hidden Costs of Sourcing Insulating Gasket Kits from China And How to Avoid Them
In oil & gas pipeline engineering, flange insulating gasket kits are often treated as "standard commodities"—clear specifications, published standards, and transparent pricing. Yet this very perception makes them the perfect category for hidden costs to accumulate.
Below are five areas where hidden expenses most frequently arise when sourcing from China, along with clear mitigation strategies.
Hidden Cost #1: Site Rework Due to Specification Mismatch
What goes wrong?
An insulating gasket is not a simple flat ring. A complete flange insulation kit consists of five components: the gasket body, insulating bolt sleeves, insulating washers, steel back-up washers, and mating fasteners. If any single component is dimensionally mismatched, the entire system can fail.
What goes wrong?
An insulating gasket is not a simple flat ring. A complete flange insulation kit consists of five components: the gasket body, insulating bolt sleeves, insulating washers, steel back-up washers, and mating fasteners. If any single component is dimensionally mismatched, the entire system can fail.

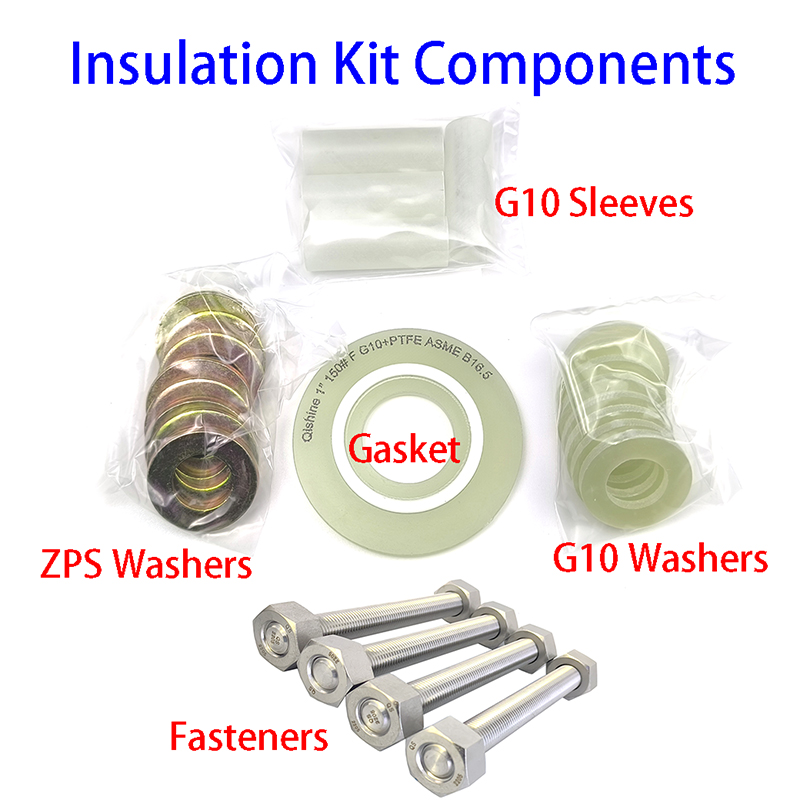

Insulation Kit Components
The most common trap is confusing Type E and Type F:
- Type F (Raised Face) – covers only the raised face portion; no bolt holes; for RF flanges
- Type E (Full Face) – matches flange O.D. with precision bolt holes; for FF flanges
- Type F (Raised Face) – covers only the raised face portion; no bolt holes; for RF flanges
- Type E (Full Face) – matches flange O.D. with precision bolt holes; for FF flanges

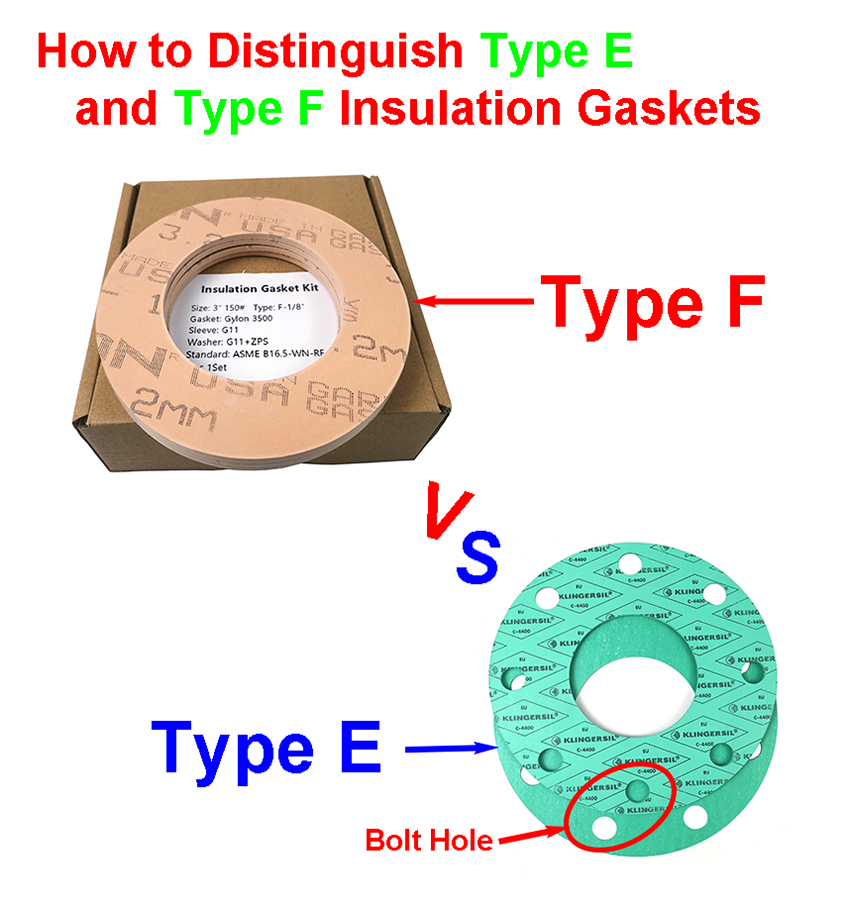

For more information, please click here: How to Distinguish Type E and Type F Insulation Gaskets
If your RFQ simply states "Insulating Gasket, DN150, Class 300" without specifying RF or FF face type, most suppliers will quote Type F by default—since it is the most common. But if your site uses FF flanges, those Type F gaskets are unusable.
How to avoid:
Include in your RFQ:
- Flange standard (ASME B16.5/B16.47) and pressure rating
- Facing type (RF / FF / RTJ)
- Flange O.D. and bolt circle dimensions
Include in your RFQ:
- Flange standard (ASME B16.5/B16.47) and pressure rating
- Facing type (RF / FF / RTJ)
- Flange O.D. and bolt circle dimensions
A competent supplier will proactively confirm these parameters. If they quote "standard" items without asking about flange type, the risk is already embedded.
Hidden Cost #2: "Good-Enough" Material Grades That Shorten Service Life
What goes wrong?
Core insulating materials are typically phenolic laminates or epoxy fiberglass (G10/G11 grades). Performance varies dramatically:
Core insulating materials are typically phenolic laminates or epoxy fiberglass (G10/G11 grades). Performance varies dramatically:
| Material | Dielectric Strength (V/mil) | Compressive Strength (psi) | Temp. Range | Water Absorption |
| Standard Phenolic | 500 | 25,000 | -54~104°C | 1.6% |
| G10 Epoxy/Glass | 550 | 50,000+ | -180~138°C | 0.10% |
| G11 Epoxy/Glass | 550 | 50,000+ | -180~177°C | 0.10% |
| G7 Silicone/Glass | 350-400 | 40,000 | -180~232°C | 0.07% |
Phenolic looks cheaper and "adequate." But its water absorption is 16× that of G10, and its upper temperature limit is lower. In humid or high-temperature service, phenolic's insulating properties degrade rapidly—service life may be a fraction of G10's.
For H₂S, amine, or high-temperature steam services, phenolic may chemically degrade, leading to softening or failure. That's why high-end projects increasingly specify G10/G11 epoxy/glass or PTFE-based insulating gaskets.
How to avoid:
Specify in your RFQ:
- Material grade (e.g., G10/G11 epoxy/glass vs. standard phenolic)
- Minimum thresholds for dielectric strength, compressive strength, and water absorption
- Require batch-specific material test reports with each shipment—not generic MTCs
Specify in your RFQ:
- Material grade (e.g., G10/G11 epoxy/glass vs. standard phenolic)
- Minimum thresholds for dielectric strength, compressive strength, and water absorption
- Require batch-specific material test reports with each shipment—not generic MTCs
Hidden Cost #3: Batch-Wise Risk from Inadequate Testing Coverage
What goes wrong?
Dielectric withstand voltage is a critical safety parameter. Industry norms require 5,000V AC for 1 minute with acceptable leakage current; after installation, insulation resistance across flanges must be ≥1 megohm.
What goes wrong?
Dielectric withstand voltage is a critical safety parameter. Industry norms require 5,000V AC for 1 minute with acceptable leakage current; after installation, insulation resistance across flanges must be ≥1 megohm.
Many small suppliers perform only first-article testing, not full-batch coverage. Third-party spot checks at site have shown reject rates in the double digits. If non-conformance is discovered on-site—batch rejection, emergency replenishment—the time and cost penalties are severe.
How to avoid:
Write into your contract:
- 100% dielectric withstand test reports per batch, not spot-check
- Clearly defined test conditions (voltage, duration, leakage current limits)
- Traceable batch numbering—material report numbers must match physical stamping/labels
Write into your contract:
- 100% dielectric withstand test reports per batch, not spot-check
- Clearly defined test conditions (voltage, duration, leakage current limits)
- Traceable batch numbering—material report numbers must match physical stamping/labels
Hidden Cost #4: On-Site Failures Due to Missing Installation Guidance
What goes wrong?
Insulating gaskets have different compression characteristics than ordinary non-metallic gaskets—especially phenolic grades, which are harder, more brittle, and have low compression recovery. Proper torque must be based on actual compression data for that batch, not generic values.
What goes wrong?
Insulating gaskets have different compression characteristics than ordinary non-metallic gaskets—especially phenolic grades, which are harder, more brittle, and have low compression recovery. Proper torque must be based on actual compression data for that batch, not generic values.

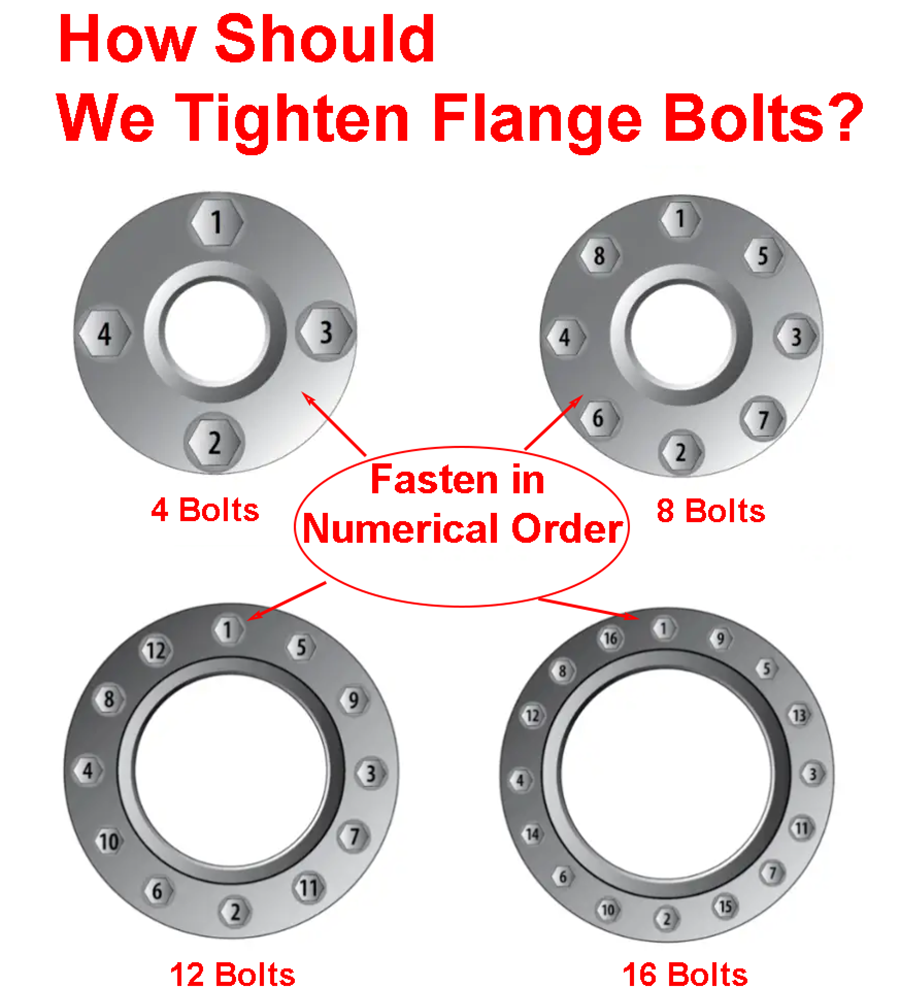

For more information, please click here:How Should We Tighten Flange Bolts?
Most common site errors:
- Impact wrenches over-torque and crack phenolic gaskets
- Bolt sleeves or insulating washers omitted—current bypasses via bolts, defeating insulation
- Impact wrenches over-torque and crack phenolic gaskets
- Bolt sleeves or insulating washers omitted—current bypasses via bolts, defeating insulation
If the supplier does not provide batch-specific recommended torque values and a bolt-tightening sequence diagram, site crews rely on guesswork—failure risk spikes.
How to avoid:
Require the supplier to include with each shipment:
- Recommended torque values based on actual batch test data
- Star-pattern step-by-step bolt tightening sequence diagram
- Pre-installation flange face condition checklist (ASME PCC-1 recommends 125–250 RMS finish)
Require the supplier to include with each shipment:
- Recommended torque values based on actual batch test data
- Star-pattern step-by-step bolt tightening sequence diagram
- Pre-installation flange face condition checklist (ASME PCC-1 recommends 125–250 RMS finish)
Hidden Cost #5: Document Traceability Gaps That Cause Receiving Rejection
What goes wrong?
The gasket itself is non-metallic and has no "heat number." But the mating bolts, nuts, and steel back-up washers are metallic—they require full traceability.
What goes wrong?
The gasket itself is non-metallic and has no "heat number." But the mating bolts, nuts, and steel back-up washers are metallic—they require full traceability.
Some suppliers provide "generic" MTCs—specs match, but they cannot be linked to specific batches. Proper practice: each batch of bolts must have corresponding heat-specific chemical analysis, hardness test results, and heat treatment records, with numbers physically stamped on the parts.
For Middle Eastern or international EPC projects, documentation mismatch is the #1 reason for rejection. The cost of expedited replacement freight and project delays far outweighs any initial price savings.
How to avoid:
Before order confirmation, agree on a deliverable list:
- MTC (EN 10204 Type 3.1 or 3.2 certificate)
- Heat treatment records (curves + data sheets)
- Dimensional inspection reports
- PMI (Positive Material Identification) reports
Before order confirmation, agree on a deliverable list:
- MTC (EN 10204 Type 3.1 or 3.2 certificate)
- Heat treatment records (curves + data sheets)
- Dimensional inspection reports
- PMI (Positive Material Identification) reports
Ensure all documents are fully linked to the PO number and batch number.
Systematic Approach for Procurement
These five hidden costs can turn a "cheap" order into a costly lesson. Professional buyers systematically mitigate them during the inquiry stage:
These five hidden costs can turn a "cheap" order into a costly lesson. Professional buyers systematically mitigate them during the inquiry stage:
- RFQ input – provide full service conditions, flange standards, facing types, and material grade requirements
- Supplier vetting – verify core manufacturing capabilities (molding/laminating presses, CNC machining) and in-house testing equipment (dielectric testers, spectrometers)
- Deliverables – specify traceable document lists and formats for each batch
- Installation support – require batch-measured installation guidelines, not generic copies
- Supplier vetting – verify core manufacturing capabilities (molding/laminating presses, CNC machining) and in-house testing equipment (dielectric testers, spectrometers)
- Deliverables – specify traceable document lists and formats for each batch
- Installation support – require batch-measured installation guidelines, not generic copies
Xiamen Qishine Industry Co., Ltd. , as a professional supplier of pipeline flanges, fasteners, and insulating gasket kits, assists global procurement teams in managing compliance risks from RFQ to site installation. For our Flange Insulating Gasket Procurement Technical Parameter Self-Check Checklist, please contact our engineering team.
After all, the goal of insulating gasket procurement is not "buying the cheapest kit"—it is "ensuring the pipeline system performs flawlessly throughout its service life."
