Metal Gasket is Suitable for Various Types of Flanges

author: Qishine Industry

2024-12-22

Metal gaskets play a vital role in ensuring the integrity and efficiency of various industrial equipment and systems, particularly in high-pressure and high-temperature applications. To meet a wide spectrum of uses, metal gaskets are available in different shapes and sizes, designed to fit diverse types of flanges. This article will discuss the adaptability of metal gaskets, their compatibility with different flanges, and engineering cases that demonstrate their significance and effectiveness in various applications.

One-Minute Overview

Metal gaskets are engineered to fit a wide range of flange types, including:
Flat-face flanges have a flat sealing surface and are typically employed in low-pressure applications.
Flanges are integral components used to join pipes, valves, pumps, and other equipment, creating a robust and leak-proof connection.
Tongue and groove flanges are characterized by a groove in one flange and a matching tongue in the other.

Compatibility of Metal Gaskets with Various Flanges

Flanges are integral components used to join pipes, valves, pumps, and other equipment, creating a robust and leak-proof connection. Metal gaskets are engineered to fit a wide range of flange types, including:

Raised Face Flanges

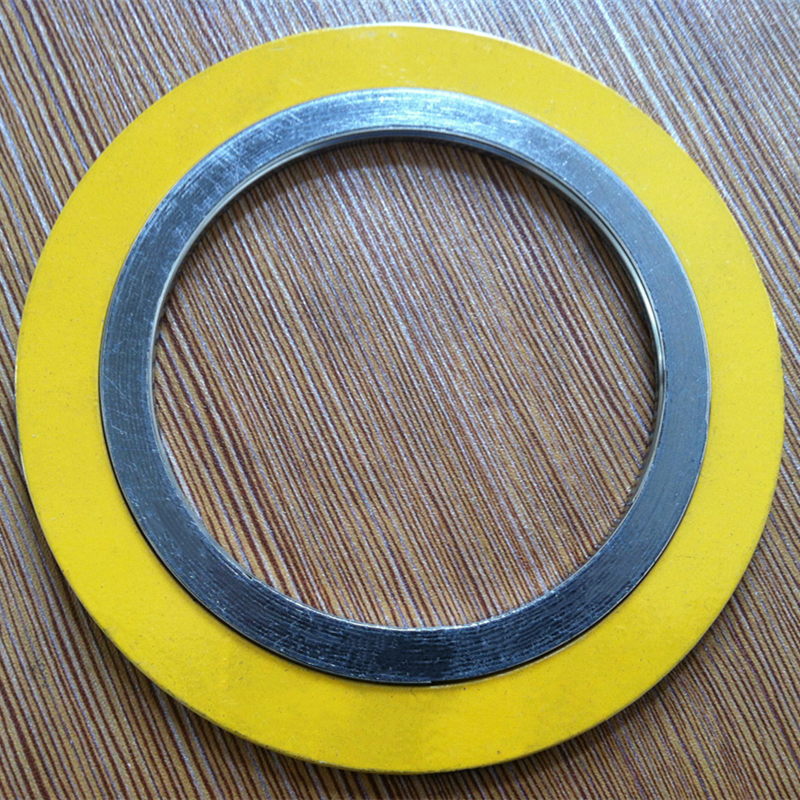

Raised face flanges feature a raised sealing surface, which concentrates the sealing force on the gasket. Metal gaskets, such as spiral wounds and Kammprofile gaskets, are commonly utilized with raised face flanges due to their outstanding sealing performance and ability to accommodate variations in pressure and temperature.

Flat Face Flanges

Flat-face flanges have a flat sealing surface and are typically employed in low-pressure applications. Metal jacketed gaskets are often used with flat face flanges, as they provide an effective seal while accommodating minor surface irregularities.

Ring Type Joint (RTJ) Flanges

RTJ flanges are equipped with grooved sealing surfaces that are specifically designed to accommodate metal ring gaskets, These gaskets provide a strong, reliable seal in high-pressure and high-temperature applications, rendering them highly suitable for utilization in oil and gas production, chemical processing, and power generation industries.

Tongue and Groove Flanges

Tongue and groove flanges are characterized by a groove in one flange and a matching tongue in the other. They offer remarkable sealing performance, especially when used in conjunction with metal gaskets like Kammprofile or ring joint gaskets.

Lap Joint Flanges

Lap joint flanges work together with stub ends and are especially suited to systems that require frequent dismantling and maintenance. Metal gaskets such as spiral wound gaskets are often used with lap joint flanges because of their flexibility and their ability to adapt to different service conditions.

Engineering Cases

Offshore Oil and Gas Platforms

Offshore oil and gas platforms are subjected to harsh environmental conditions, requiring dependable seals to ensure the safety and efficiency of operations. Metal gaskets, including ring joints and spiral wound gaskets, are frequently employed in flanged connections on these platforms, delivering excellent sealing performance under high-pressure and high-temperature conditions.

Geothermal Power Plants

Geothermal power plants generate electricity by harnessing the Earth's natural heat. Given the necessity to endure high temperatures, pressures, and corrosive environments, they demand robust sealing solutions. Metal gaskets, such as Kammprofile and metal jacketed gaskets, are used in geothermal power plants to ensure the reliability and efficiency of heat exchangers, turbines, and other critical equipment.

Pharmaceutical Industry

The pharmaceutical industry relies on high-quality sealing solutions to maintain the purity and integrity of products throughout the manufacturing process. Metal gaskets, particularly those with PTFE fillers, are widely adopted in pharmaceutical processing equipment, including reactors, mixers, and filtration systems, to provide reliable seals that can withstand high pressures, temperatures, and aggressive chemicals.

Pulp and Paper Industry

The pulp and paper industry entails high-pressure and high-temperature processes, for instance, digesters, evaporators, and steam systems. Metal gaskets, including spiral wound and metal jacketed gaskets, are essential for maintaining the reliability and efficiency of these systems, as they present excellent sealing performance under harsh conditions.

High-Pressure Vessels in Research Facilities

Research facilities frequently utilize high-pressure vessels to conduct experiments and tests in controlled environments. Metal gaskets, such as ring joints and Kammprofile gaskets, are vital for ensuring the integrity of these vessels by supplying reliable seals that can withstand extreme pressures and temperatures.

Food and Beverage Industry

The food and beverage industry calls for stringent hygienic standards and reliable sealing solutions to preclude contamination and ensure product quality. Metal gaskets with PTFE or other non-toxic fillers are often utilized in processing equipment, such as pasteurizers, sterilizers, and heat exchangers, to furnish seals that can withstand high pressures, temperatures, and aggressive cleaning agents.

Customized Metal Gaskets for Special Applications

In some cases, standard metal gaskets may not be suitable for specific applications. In these situations, customized metal gaskets can be designed and manufactured to meet the unique requirements of the application. These custom gaskets can be tailored in terms of shape, size, material, and other characteristics to ensure optimal sealing performance under specific circumstances.

Conclusion

Metal gaskets, with their versatility in shape and size, are indispensable for a wide range of high-pressure and high-temperature applications across various industries, including power generation, oil and gas, pharmaceuticals, pulp and paper, and food and beverage processing. By examining engineering cases, it becomes evident that metal gaskets are of crucial importance for maintaining the integrity and efficiency of equipment and systems operating under extreme conditions. As industry demands continue to evolve, metal gaskets will remain a critical component in ensuring the security, reliability, and longevity of industrial processes.

FAQ

What is metal gaskets?

To meet a wide spectrum of uses, metal gaskets are available in different shapes and sizes, designed to fit diverse types of flanges.

What is the minimum order quantity for spiral wound gaskets?

Standard sizes are available from one piece. Non-standard diameters, special winding materials and customised ring combinations are quoted individually, so the minimum follows the specification.

How long does production usually take?

Routine production is normally finished within 30 days. The schedule depends on quantity, winding material and ring type, and available stock can be dispatched without delay.
