How to Measure the Size of a Bolt
author: www.qishine.com
2026-03-06
Step-by-Step Guide to Measuring Bolt Sizes: A Few Simple Steps to Get it Right Easily.
In mechanical assembly, furniture installation, or daily repairs, bolts are one of the most common fasteners. Choosing the correct bolt size is crucial for ensuring a secure and safe connection. Many people feel at a loss when faced with a pile of bolts. Actually, as long as you master a few simple measuring steps, you too can quickly and accurately determine bolt sizes. This article provides you with a clear and easy-to-follow method.
In mechanical assembly, furniture installation, or daily repairs, bolts are one of the most common fasteners. Choosing the correct bolt size is crucial for ensuring a secure and safe connection. Many people feel at a loss when faced with a pile of bolts. Actually, as long as you master a few simple measuring steps, you too can quickly and accurately determine bolt sizes. This article provides you with a clear and easy-to-follow method.
Preparation
Before starting, it is recommended to have a vernier caliper (the most accurate tool). If not available, a ruler with millimeter markings can work in a pinch. Additionally, a magnifying glass might be helpful for observing the markings on the bolt head.
Before starting, it is recommended to have a vernier caliper (the most accurate tool). If not available, a ruler with millimeter markings can work in a pinch. Additionally, a magnifying glass might be helpful for observing the markings on the bolt head.
Six Steps to Determine Bolt Size
Step 1: Measure the bolt diameter The diameter of the bolt is its "core dimension." Use calipers to measure the ASME Hex Head Bolt's diameter. If using a ruler, align it carefully with the scale and read the closest value. Note: When measuring, select the threaded portion rather than the smooth shank. For metric bolts, this value is usually an integer or a decimal such as 0.5 or 0.75 (e.g., M8, M10), while imperial bolts are often expressed in fractions of an inch (e.g., 1/4 inch, 3/8 inch).
Bolt Diameter: Several measurement methods
Step 2: Determine the Thread Pitch
Thread pitch determines whether a nut will fit properly.
For imperial bolts, "Threads Per Inch (TPI)" is used. You can measure one inch (approx. 25.4 mm) and count the number of thread peaks within that length. If the bolt is shorter, count the peaks in 1/2 inch and multiply by 2.
Thread pitch determines whether a nut will fit properly.
For imperial bolts, "Threads Per Inch (TPI)" is used. You can measure one inch (approx. 25.4 mm) and count the number of thread peaks within that length. If the bolt is shorter, count the peaks in 1/2 inch and multiply by 2.
For metric bolts, pitch is directly stated as the distance between adjacent thread peaks in millimeters. Use the depth gauge of calipers or a thread pitch gauge to measure.
Thread gage measure the pitch of teeth
Step 3: Measure the Overall Shank Length
This is the total length from the bearing surface of the bolt head (the part that contacts the workpiece) to the very end of the bolt.
Note: For countersunk bolts, measure from the top of the head. This length determines how thick a material the bolt can penetrate.
This is the total length from the bearing surface of the bolt head (the part that contacts the workpiece) to the very end of the bolt.
Note: For countersunk bolts, measure from the top of the head. This length determines how thick a material the bolt can penetrate.

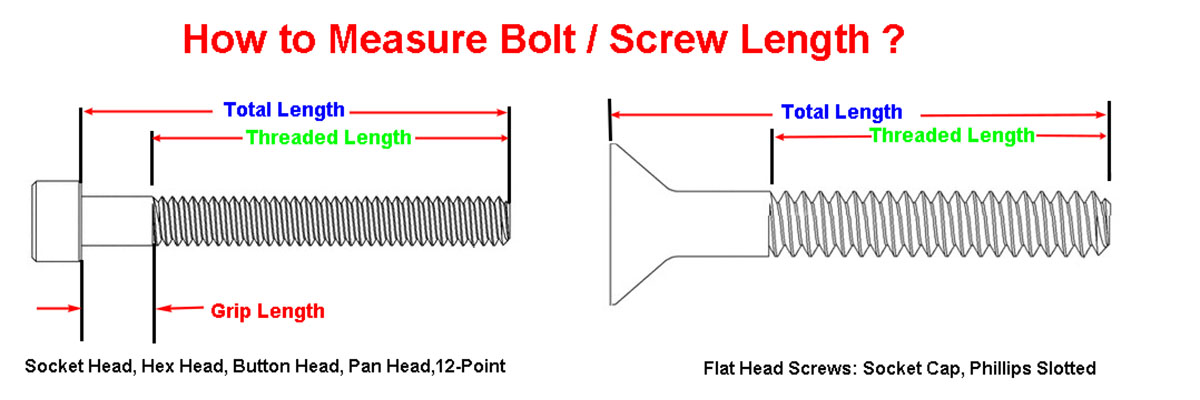

How to Measure Bolt/ Screw Length, Note that the length of the countersunk bolt includes the head.
Step 4: Identify the Bolt Strength Grade
The numbers or symbols on the bolt head indicate its material and strength grade. This is a critical safety indicator.
Metric Bolts: Common markings include "4.8", "8.8", "10.9", "12.9", etc. Generally, a higher number indicates higher strength. For example, Grade 8.8 is a commonly used medium-strength bolt.
The numbers or symbols on the bolt head indicate its material and strength grade. This is a critical safety indicator.
Metric Bolts: Common markings include "4.8", "8.8", "10.9", "12.9", etc. Generally, a higher number indicates higher strength. For example, Grade 8.8 is a commonly used medium-strength bolt.
Imperial Bolts: Often indicated by radial lines, e.g., three lines for SAE Grade 5, six lines for SAE Grade 8.

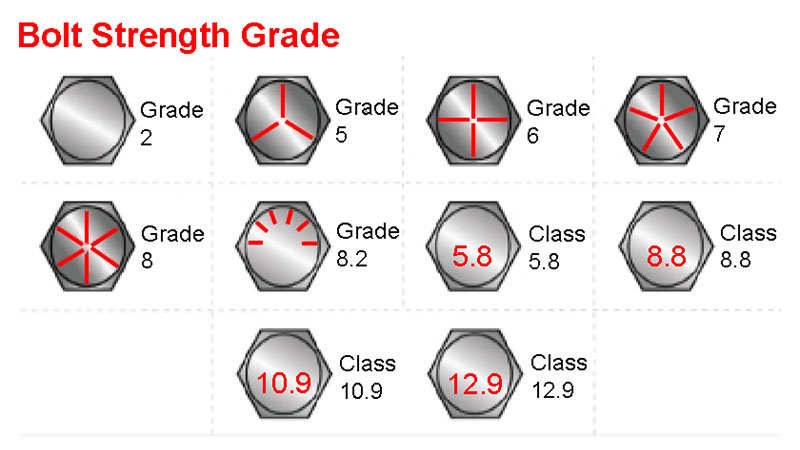

How to quickly determine the strength of a bolt
Understanding the required strength grade for your application is vital. High-grade bolts should be used for load-bearing or critical parts.
Step 5: Confirm the Head Style
The head style determines the tool needed for installation.
Hex Head: Most common, uses an open-end wrench or socket.
Square Head: Often used where rotation prevention is needed.
Round/Countersunk Head: Used where a flush surface is required.
Internal Hex/Allen or Torx Head: Requires corresponding driver tools.
The head style determines the tool needed for installation.
Hex Head: Most common, uses an open-end wrench or socket.
Square Head: Often used where rotation prevention is needed.
Round/Countersunk Head: Used where a flush surface is required.
Internal Hex/Allen or Torx Head: Requires corresponding driver tools.
Head style: Square Head, Hex Head, Allen Head, Round Head
Step 6: Measure the Thread Length
Not all bolts are fully threaded. It's important to distinguish between "fully threaded bolts" and "partially threaded bolts" (with a smooth shank section and a threaded section). Measure the length from where the thread starts to the end. In some applications requiring precise clamping or vibration resistance, the thread length needs to match the connection thickness.
Not all bolts are fully threaded. It's important to distinguish between "fully threaded bolts" and "partially threaded bolts" (with a smooth shank section and a threaded section). Measure the length from where the thread starts to the end. In some applications requiring precise clamping or vibration resistance, the thread length needs to match the connection thickness.

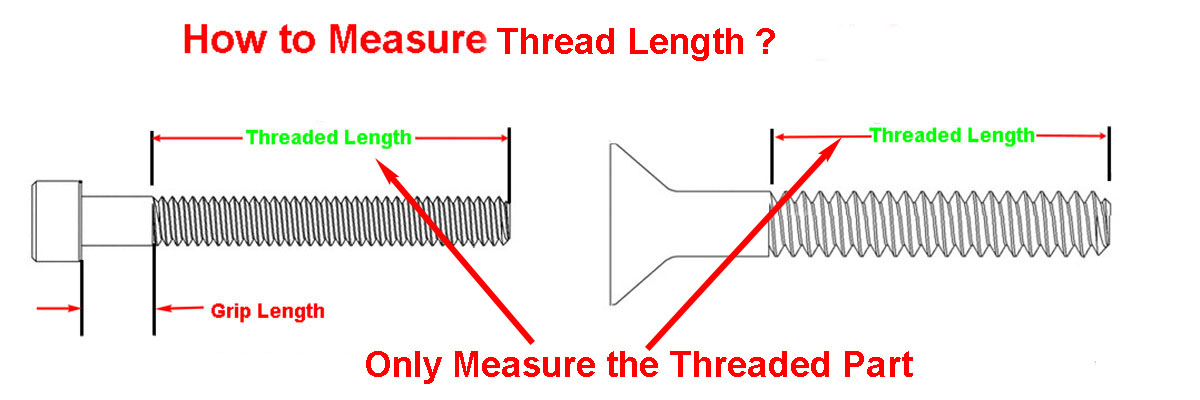

How to Measure Thread Length
Practical Tips and Precautions
Order of Specification: Standard bolt specification descriptions usually follow the order: "Diameter x Length x Pitch/Grade", e.g., "M10 x 30 x 1.5-8.8".
Prefer Metric: Even if you measure an imperial size, it's advisable to choose metric (mm) bolts whenever possible, as they are the international standard and easier to source and interchange.
Old-for-New Comparison: When replacing a bolt, the simplest method is to take the old bolt to the hardware store for direct comparison.
Order of Specification: Standard bolt specification descriptions usually follow the order: "Diameter x Length x Pitch/Grade", e.g., "M10 x 30 x 1.5-8.8".
Prefer Metric: Even if you measure an imperial size, it's advisable to choose metric (mm) bolts whenever possible, as they are the international standard and easier to source and interchange.
Old-for-New Comparison: When replacing a bolt, the simplest method is to take the old bolt to the hardware store for direct comparison.
Safety First: For load-bearing structures, vehicles, or critical equipment, if you are unsure, be sure to consult a professional engineer or fastener supplier. Never guess.
Summary
Determining bolt size isn't complicated—it's like completing a small measurement project. By systematically measuring the diameter, length, and identifying the thread and head markings, you can get all the information you need. Mastering this skill will not only make you more adept at repairs and assembly but also ensure every connection is safe and reliable.
Determining bolt size isn't complicated—it's like completing a small measurement project. By systematically measuring the diameter, length, and identifying the thread and head markings, you can get all the information you need. Mastering this skill will not only make you more adept at repairs and assembly but also ensure every connection is safe and reliable.
If you still feel uncertain after following these steps, or have a special application (e.g., high temperature, high corrosion), the best practice is to contact a professional fastener supplier or technician. Provide them with your measured data and a description of the use, and they can recommend the most accurate and safest choice for you.
