High-performance and eco-friendly insulating gaskets have become the mainstream direction of future development

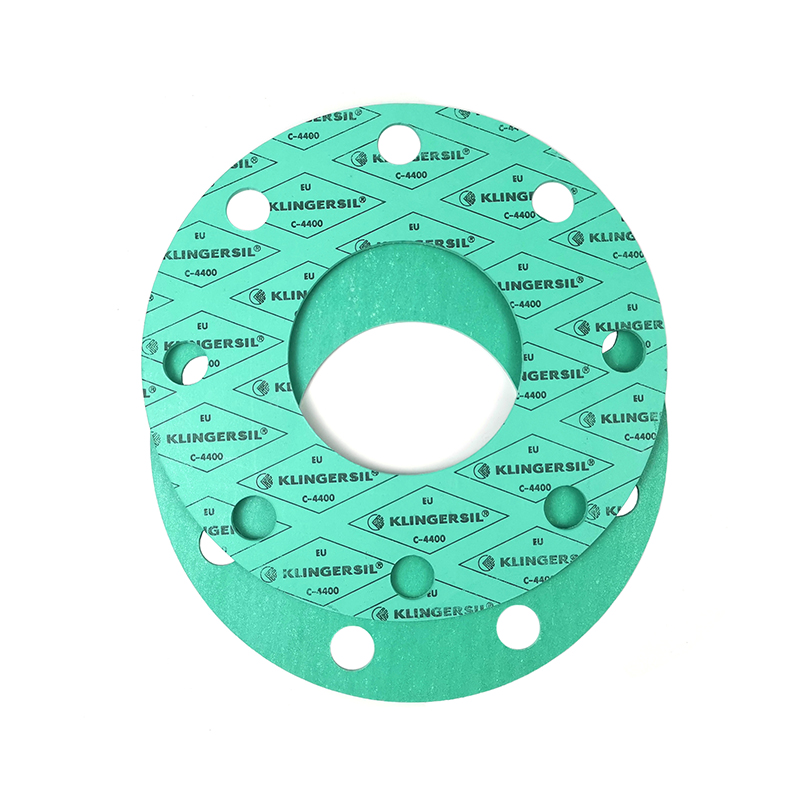

An insulating gasket carries one duty on a flanged joint: it breaks the electrical path between two metal faces while the joint stays sealed and bolted. That duty decides how long a cathodically protected line survives, so the material choice behind flange gaskets is an engineering decision, not a consumable purchase. High-performance and eco-friendly insulating gaskets have become the mainstream direction for new projects and retrofits.

What a Flange Insulation Gasket Kit Must Deliver

A complete kit is more than the gasket. Three elements interrupt the current, and all three must survive the same pressure, temperature and medium.

• Insulating gasket — phenolic laminate, glass-epoxy (G10/FR4), PTFE-faced or fully encapsulated; it seals and isolates at the flange face.
• Insulating sleeves — they line the bolt holes so the stud never touches the bore and the metallic path stays broken.
• Insulating washers — they sit under the bolt head and nut, isolating the fastener from the flange.

If one of the three is missing or crushed during assembly, current leaks across the joint and corrosion concentrates on the flange face — usually long before the gasket itself fails.

Material and Performance Trends

Specification targets keep rising: thinner sections, wider temperature windows and dielectric strength that stays stable after years of compression.

• High-thermal-conductivity polymer composites, including boron-nitride filled grades, draw heat away from hot joints without giving up insulation.
• Aerogel composites keep their insulating behaviour from −120 °C to 300 °C, which widens the service window of one gasket family.
• A five-layer build reaches 45 kV/mm power-frequency withstand, 50 % above the national standard it is measured against.
• Carbon-fibre reinforced polymers cut gasket mass, which matters on skids and modules where every kilogram is budgeted.

Eco-Friendly Design Without Losing the Seal

Green formulations used to mean weaker sealing. That gap is closing: halogen-free phosphorus–nitrogen flame retardants, water-borne coatings and bio-based resins cut VOC output during manufacture, and recyclable or biodegradable constructions extend the material life-cycle.

Chemical resistance has moved at the same time. Fluoroelastomer grades withstand H2S, CO2 and amines, and a fully encapsulated gasket — a metal core completely covered by a polymer jacket about 3 mm thick — keeps its insulation through hydrotest and years of compression. On pipe flanges carrying sour gas or serving amine units, that combination keeps the isolation reliable while the pipeline stays protected.

• Halogen-free flame retardants — less toxic smoke with no loss of dielectric strength.
• Water-borne coatings and bio-based resins — lower VOC output in production.
• Recyclable or biodegradable builds — simpler handling at end of life.
• Fully encapsulated designs — no bare metal at the joint face, so insulation survives hydrotest.

Frequently Asked Questions

How do I choose between phenolic and glass-epoxy insulating gaskets?

Match the temperature and the medium first. Phenolic laminate suits mild, dry utility service; glass-epoxy (G10/FR4) handles higher temperatures and hydrocarbons, so it is the usual pick for oil and gas isolation sets.

What must an insulating gasket resist in sour service?

H2S, CO2 and amine solutions attack many elastomers. Fluoroelastomer and PTFE-faced grades resist those media and hold their dielectric value after long exposure.

Why does a fully encapsulated gasket keep its insulation after hydrotest?

The metal core is completely covered by the polymer jacket, so no bare metal reaches the flange face. Test water cannot bridge the joint, and the insulation value returns once the gasket is compressed.

How is the insulation verified after installation?

Tighten the bolts in a cross pattern so the gasket loads evenly, then measure flange-to-flange resistance with an insulation tester. Readings above 1 MΩ dry and above 100 kΩ in wet service show the isolation is intact.
