Gasket Inner Ring and Outer Ring, 300LB, FG

Name: Gasket Inner Ring and Outer Ring, 300LB, FG
SKU: QS 23 G 119
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model No.: QS 23 G 119 Hits: 2

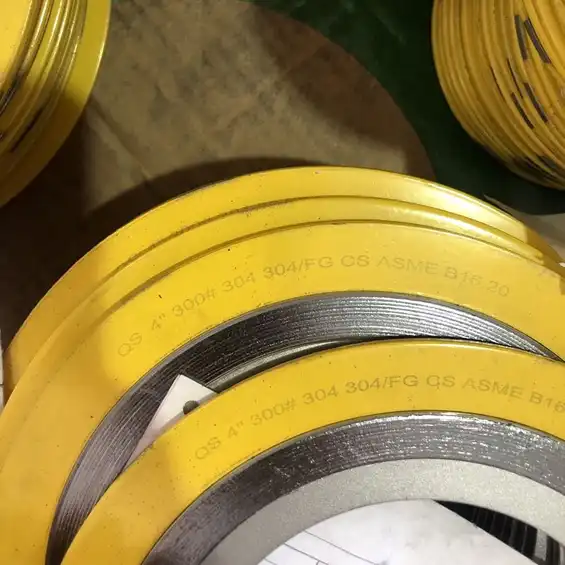

Gasket Inner Ring and Outer Ring Design for RF and FF Flange, Spiral Wound Gasket, Size 4 Inch, Class 300#, Inner Ring SS304, Outer Ring Epoxy Coated CS, Filler FG, Standard ASME B16.20

Request a quote

Tags:

4 Inch Spiral Wound Gasket
300# Spiral Wound Gasket
SS304 Spiral Wound Gasket

Next: RTJ Ring Joint, AISI 316, Blue PTFE Coating

Previous: R Type Gasket, 900LB, Oval, 120BHN

Detail Information

Product : Gasket Inner Ring and Outer Ring
Type: Spiral Wound Gasket
Size: 4 Inch
Class: 300#
Material Inner Ring: SS304
Material Outer Ring: Epoxy Coated CS
Filler: FG
Standard: ASME B16.20
