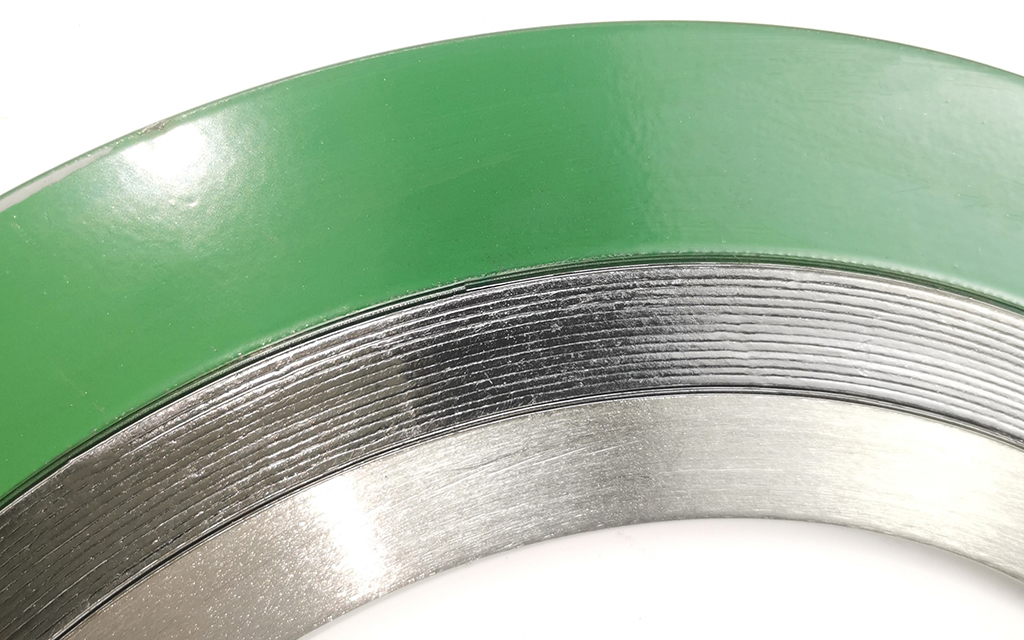

ASME B16.20 Spiral Wound Gasket
QS Gasket: ASME B16.20 Spiral Wound Gasket
Product: Fujian ASME B16.20 Spiral Wound Gasket
Size: 0.5 inch and above
Type: Basic Type, With inner ring, With Outer ring, With Inner and Centering Ring
Material: CS/304/304L/316/316L/321/347... all steel family
Special raw material inventories. Fox Example: Duplex, Monel. Hastelloy, Inconel, Ti, 347, 317, Alloy 20, Zr 702, B2, B3, AL6XN, 904L , etc
Pressure: 150#, 300#, 600#,900#,1500# and 2500#
Filler: Flexible Graphite, PTFE, Mica
Standard: ASME B16.20, ASME B16.5, ASME B16.47 A, ASME B16.47 B, DIN, EN, JIS
Size: 0.5 inch and above
Type: Basic Type, With inner ring, With Outer ring, With Inner and Centering Ring
Material: CS/304/304L/316/316L/321/347... all steel family
Special raw material inventories. Fox Example: Duplex, Monel. Hastelloy, Inconel, Ti, 347, 317, Alloy 20, Zr 702, B2, B3, AL6XN, 904L , etc
Pressure: 150#, 300#, 600#,900#,1500# and 2500#
Filler: Flexible Graphite, PTFE, Mica
Standard: ASME B16.20, ASME B16.5, ASME B16.47 A, ASME B16.47 B, DIN, EN, JIS
Quantity
ASME B16.20 Spiral Wound Gasket is a highly versatile and reliable sealing solution that has been engineered to meet the needs of various industries. These gaskets are designed to provide optimal sealing performance in a wide range of applications, including high-pressure, high-temperature, and corrosive environments.
Flexible Graphite is an excellent choice for high-temperature and high-pressure environments due to its exceptional thermal stability and resistance to chemical attack. This material is compatible with a wide range of chemicals, making it suitable for use in the chemical and petrochemical industries. The ASME B16.20 Spiral Wound Gasket with Flexible Graphite filler is an ideal choice for applications such as heat exchangers, boilers, and reactors.
ASME B16.20 Spiral Wound Gasket is a versatile and reliable sealing solution that can be tailored to suit various industrial applications.
ASME B16.20 Spiral Wound Gasket Quotation
| Russia Moscow Customer Quotation | |||||
| Xiamen Qishine Imp.&Exp. Co.,Ltd. | |||||
| Email:qishine@qishine.com | Website: www.cnqishine.com | ||||
| Tel: +86-592-5255951 | Date: | ||||
| Quotation Ref.: | Contact Person: Amy | ||||
| Price Valid Time: 7 days from the date of quotation. | |||||
| Payment Terms: T/T 100% in advance to start the production. | |||||
| Production time: 35 days from the date of receiving your advance payment. | |||||
| № п/п | item | Description | Q-ty | Size (inch) | Unit Price (USD) |
| 1 | ASME B16.20 Spiral Wound Gasket | CL150, RF, 316 SS, w/ flexible graphite filler, 316SS Inner Ring, CS Outer Ring | 23 | 10 | 6.18 |
| 2 | |||||
| Total | Ex-work | ||||
